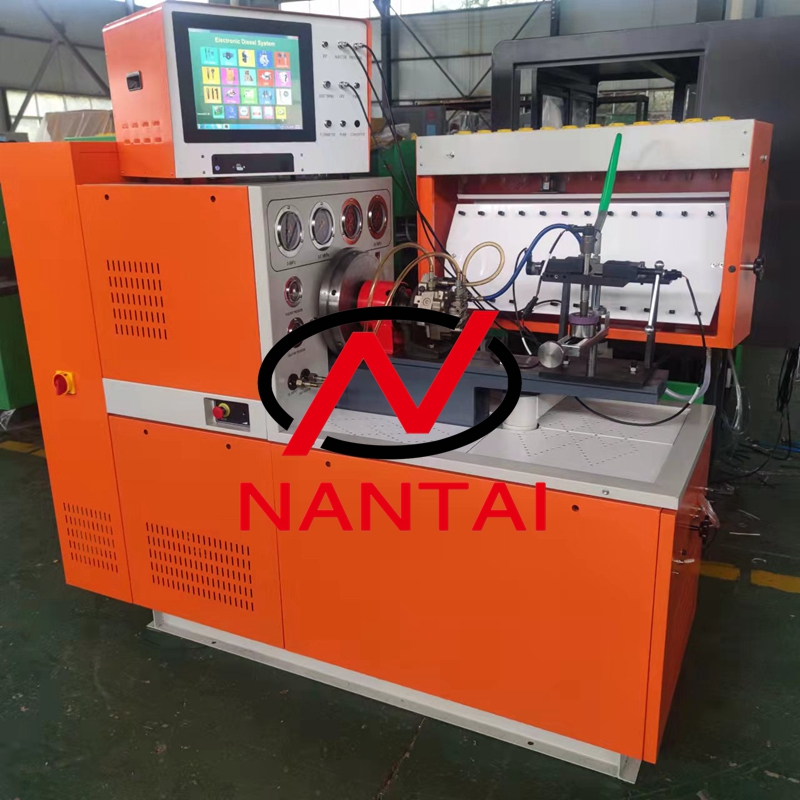

NEW Design 12PCR Multifunctional Test Bench

It can can be used to test Traditional Mechanical Pump, Common Rail system, EUP/EUI system,HEUI system.

Standard Function:

1. Test mechanical pump (12 cylinders)

2. Test common rail pump(include HP0 pump,the pump with 2 ZME metering units)

3. Test common rail injector(BOSCH,DENSO,SIEMENS,DELPHI,CUMMINS,CAT,include CUMMINS ISG/XPI injector).

4. Test 1 piece piezo injector.

5. Test 4 pin (BOSCH CRIN4) injector.

6.Test the inductance of the injector

7.  Injector coding can be generated, including Bosch IQA / IMA / ISA,Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI

8.Injector AHE test, atomization test, opening pressure test, etc.

9.Online remote assistance and system upgrade

Optional function

1. Test Response Time(BIP) for common rail injector

2. Test CAT 320D pump

3. Test HP5/HP6 pump

4.Test EUI / EUP,use Multi-Cam Cambox

5.Test Response Time(BIP) for EUI injector

6. EUI/EUP upgrade kit for nissan EUI, VW EUI, DETROIT DD60 N2

7. Test cummins X15/Q60 injector

8.Test cummins PT injector

9. Test HEUI(C7 C9 C-9 3126B injector),automatically adjust pressure

10. Test CAT HEUI pump

11.Test HEUI (3406,3408,3412,FORD 6.0 injector)

12. Test VP37 PUMP

13. Test VP44 PUMP

14. Test RED4 PUMP

Test interface---New test software

New function!!!

Real-time curve of the injector driving current

The test plan is consistent with the original data, and the test accuracy reaches the original factory standard.

Step Name	Description
LEAK	Injector leak test
WARM	Warm up
VL	Full load
VL(R)	Full load fuel return
EM	Emissions
LL	Idle
VE	Preliminary injection
VE(R)	Preliminary injection fuel return
VE2	Preliminary injection (High rail pressure)

Common rail pump test

Step Name	Description
Max Power	Maximum horsepower
No Flow	Zero pump flow
Efficiency	Efficiency
Start	Start
IMV 1-4	Flow of metering unit under different currents
