COMMON RAIL INJECTOR TEST BENCH
NTI700 Common Rail Injector Test Bench NTI700 test 4 pcs injector at same time
NTI700 test bench can be used to test Common Rail injector.It can test 4 pcs common rail injectors (include piezo injectors)at same time.
Function:
1.Test common rail injector: (BOSCH, DENSO, SIEMENS, DELPHI, CUMMINS, CAT, etc, including CUMMINS ISG/XPI injector,4 pin injector).2.Test piezoelectric injector
3.Test the injector's inductance and resistance
4. Injector coding can be generated, including Bosch IQA / IMA / ISA,Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI
5.Test Response Time(BIP) for common rail injector (Optional)
6.All data can be searched, printed
7.Can connect to WIFI and upgrade test data for free. Also be operated remotely by teamviewer.
Technical parameter:
1.Industrial computer system, 17 inch color LCD touch screen control, easy to operate, stable performance.2.The BOSCH CP3.3 pump is configured.
3. Input power: Voltage three-phase 220V / 380V voltage, for you to choose.
4. Motor speed range: 0-4000RPM.
5. BOSCH high pressure valve. pressure range 0-2400BAR. Rail pressure accuracy ±0.5 bar
6. Good quality China gear flowmeter for injector testing.Accurate testing, reliable and stable use.
Flow measurement accuracy:0.1ml,Flow testing range: 0-600ml/1000times
7. Diesel tank: 40L

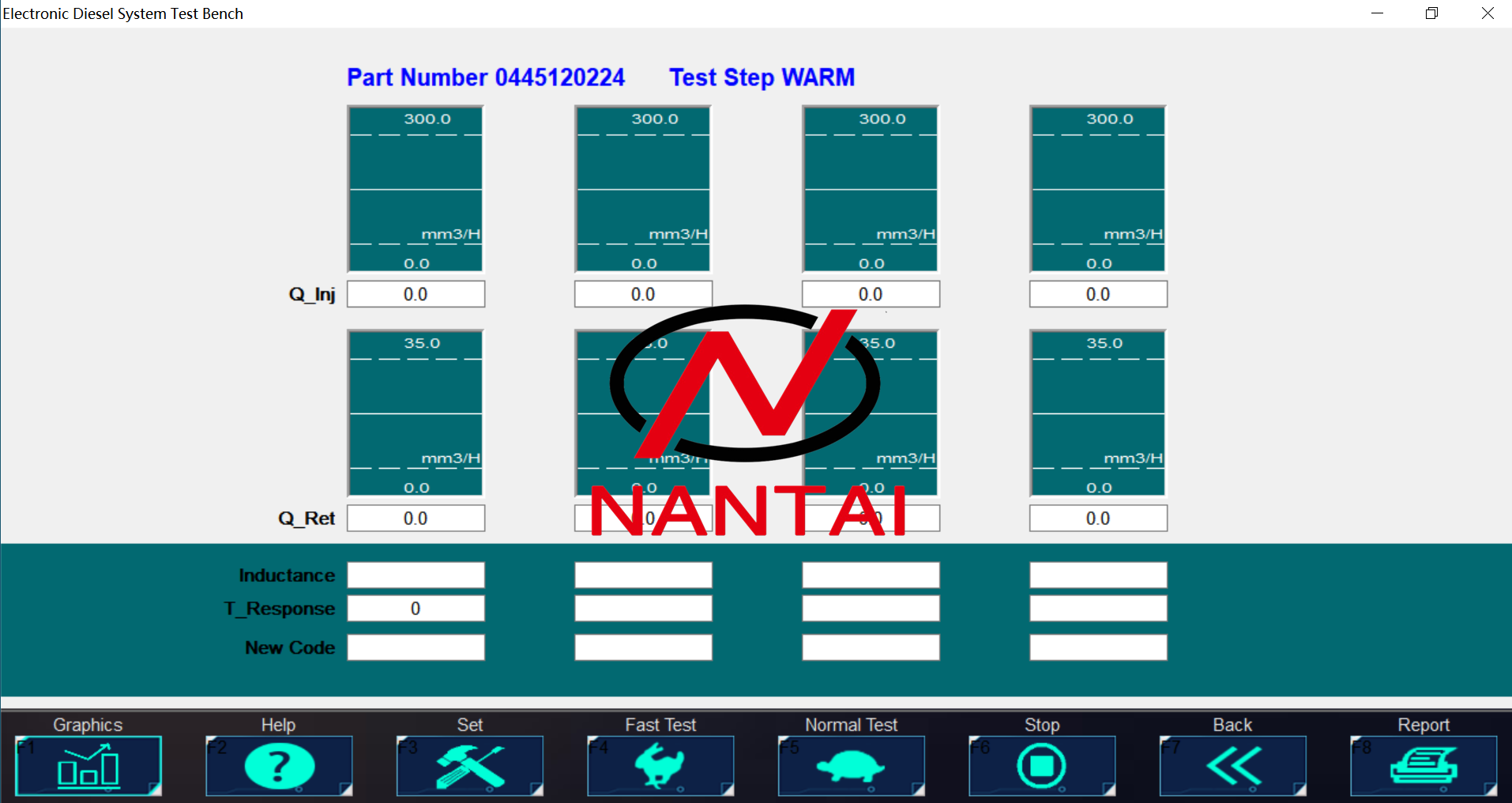

Test interface---New test software
